Hello All, I bought and installed a Cyclone 3k Kit from LUNA back in 2018 on an old donor GIANT mountain bike. Although I have not put a ton of miles on it, it has worked great. It came with a stock 40a controller that has no label or markings. I use it with a 48v 12.5 AH battery capable of 50A continuous. I don't get all the wattage out of the motor, but it is more than what I need and a ton of fun.
First Question: Has anyone extended their motor wiring and if so, what gauge and type of wire did you use? I want to extend 24" to get the controller into a bag on the back rack instead of the typical triangle bag or exposed mounting on frame.
Second Question: The kit came with a PAS sensor but no switch to turn it on or set the level. There are two connectors on the controller. Any suggestions on where or what kind of switch to use for this? There is also a 3-speed mode function that I don't have a switch for. The one on LUNA's site has been out of stock for a long time. There was mention that the switch they recommend would operate the cruise option as well? There is a two pin connector for that as well on the controller.
Would something like this work for the 3-speed function?
Would something like this potentially work for both?

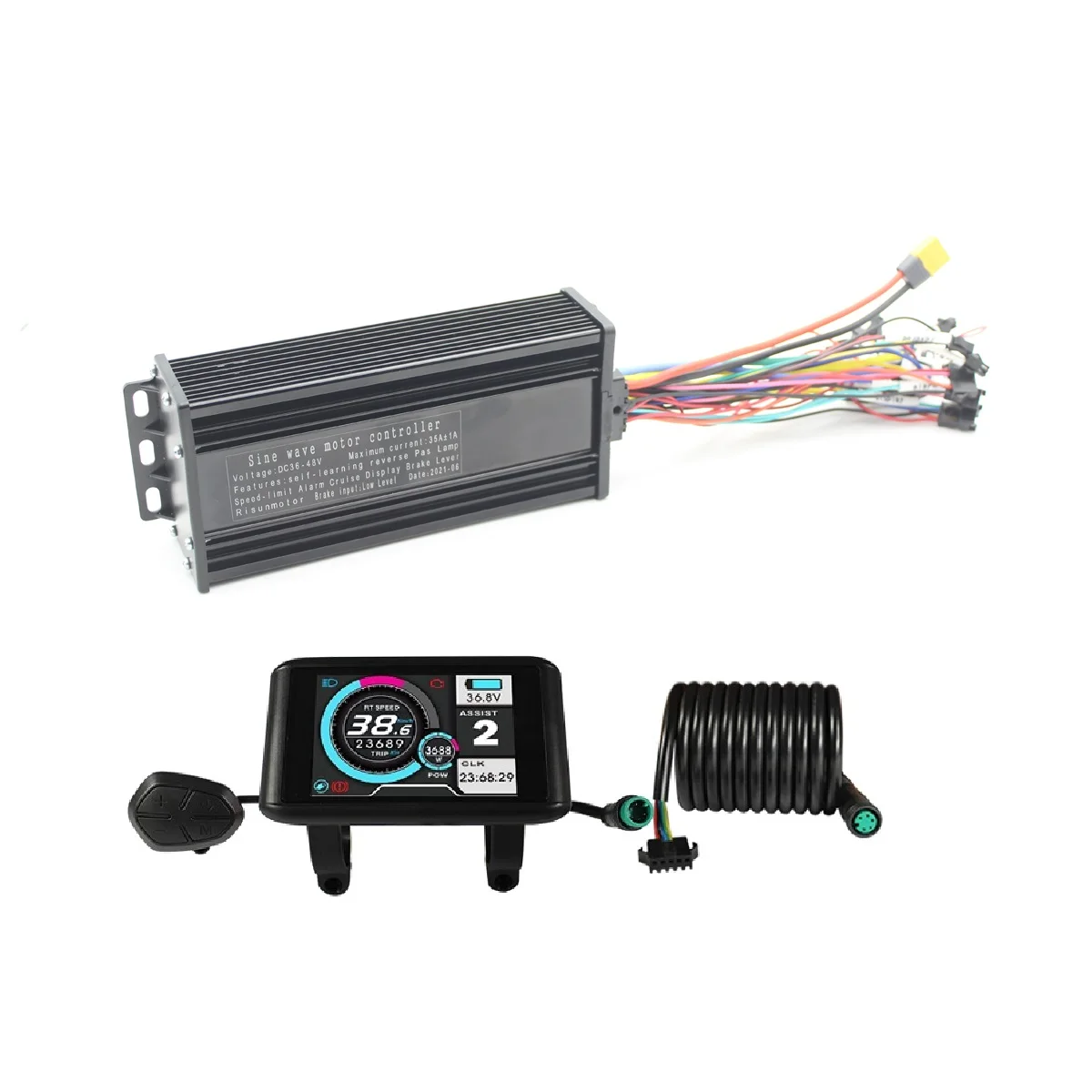

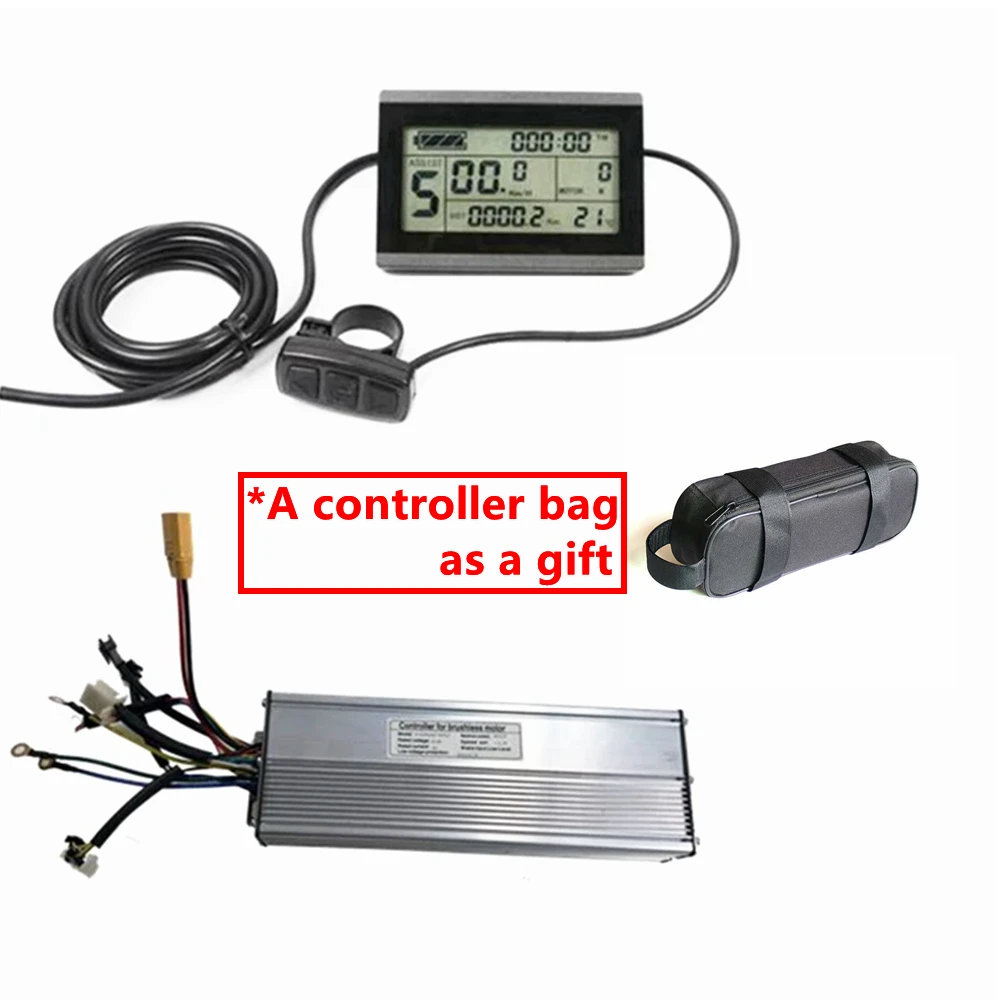

Third Question: I want to upgrade the controller to one that supports a display or is Bluetooth so I can use my phone. I can't seem to find anything reasonable in the US, but I did find a few options on Ali Express. Just wondering if anyone has gone this route and if they had any success using either of these with a Cyclone Motor. I would buy from Cyclone but the shipping is almost as much as the controller!
or
Any and all responses would be greatly appreciated.
